Model Number : GS650L30-MS5
Certification : CE , Rohs
Place of Origin : China
MOQ : 100pcs
Price : 28.8USD
Payment Terms : Paypal , Western Union ,T/T , Moneygram
Supply Ability : 10000pcs/month
Delivery Time : 3-5 days for sample order or according to your order quantity
Packaging Details : first in anti-static bag then in carton
Wavelength : 650nm
Output Power : 5*6mw=30mw
Operating Voltage : 3.0V
Operating current : ≤150mA
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Wavelength: 650nm
Output power: 5*6mw=30mw
Optical Lens : hlass lens
Operating voltage: 3.0V (powered by 2x AA batteries)
Operating current: ≤150mA
Circuit : APC

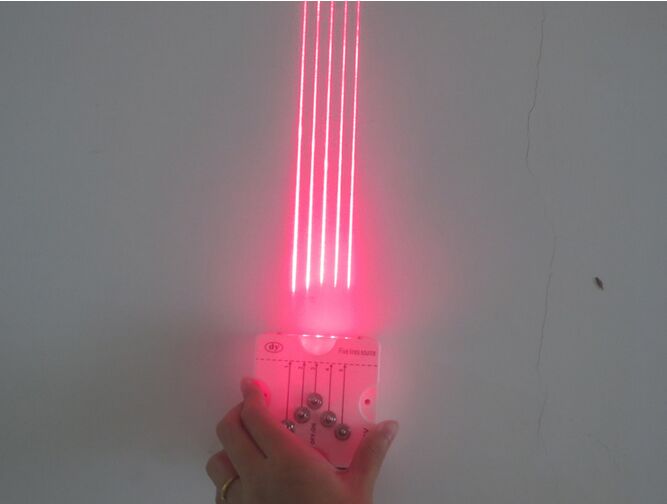

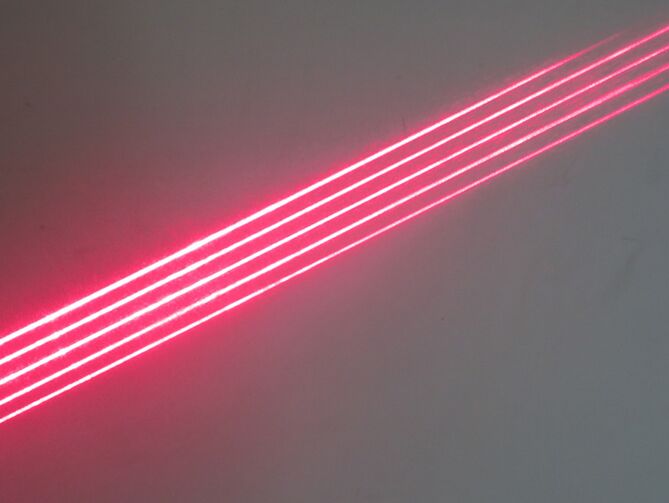

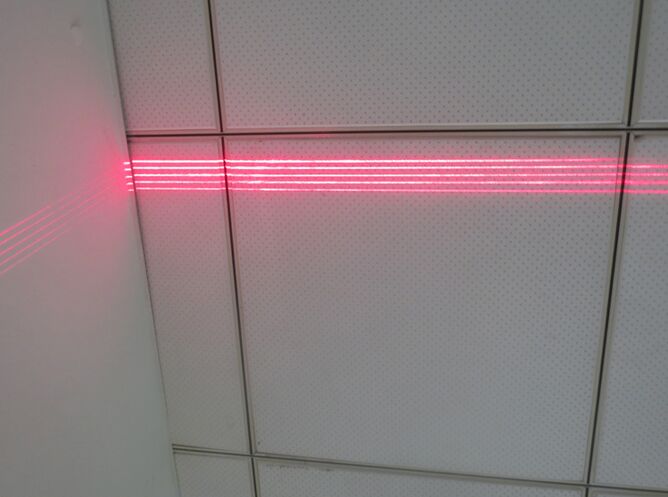

Beam Type : five parallel lines
Parallel lines spacing : 10mm
Dimension: 100*85*37mm(including battery case)
Operating temperature: -10-40°C
Storage temperature: -40-80°C
Life time : ≥8000 hours
![]() |
650nm 30mw Five Red Parallel Line Laser Diode Module For Electrical Tools And Leveling Instruments Images |
