445nm 1.5W Blue Laser Module With TTL Modulation For Laser Stage Light

Product Categories

SHENZHEN G-SUN OPTOELECTRONICS CO.,LTD

Contact Now

445nm 1.5W Blue Laser Module With TTL Modulation For Laser Stage Light

Place of Origin : China

Certification : CE ,Rohs

Model Number : GS-445D1500

MOQ : 10pcs

Packaging Details : first in anti-static bag then in carton

Delivery Time : 3-5 days for sample order or according to your order quantity

Payment Terms : Paypal , Western Union ,T/T , Moneygram

Supply Ability : 1000pcs/month

Price : 127.0USD

Wavelength : 445nm

Output Power : 1.3-1.5W

Cooling Method : Aluminum Radiator

Material : Aluminium

Operating Voltage : 12V

Working Current : < 1.6A

Contact Now

Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.

Specifications:

Mainframe Dimension: 69mm (L)*30mm(W)*30mm(H)

Power Supply Dimension: 47.5mm (L)*31.5mm(W)*16mm(H)

Wavelength: 445nm

Output Power: 1.3-1.5W

Cooling Method: Aluminum Radiator

Size of Light-spot: Adjustable Focusing

Performance Characteristic: Continuous Work

Surface Treatment: Blue

Material: Aluminium

Circuit Control: Constant Current

Anti-access Protection: Identify the Positive and Negative Automatic

Operating Voltage: 12V

Working Current: < 1.6A

Warm-up Time: No
Working Temperature: -10°c~+40°c

Storage Temperature: -10°c~+40°c

Structure Features: Laser Diode + Lenses + Radiating Shell

Remarks:Power Supply is extenal.

Warning: the input voltage is 12V, exceed 12V will cause the circuit and module damaged.

445nm 1.5W Blue Laser Module With TTL Modulation For Laser Stage Light

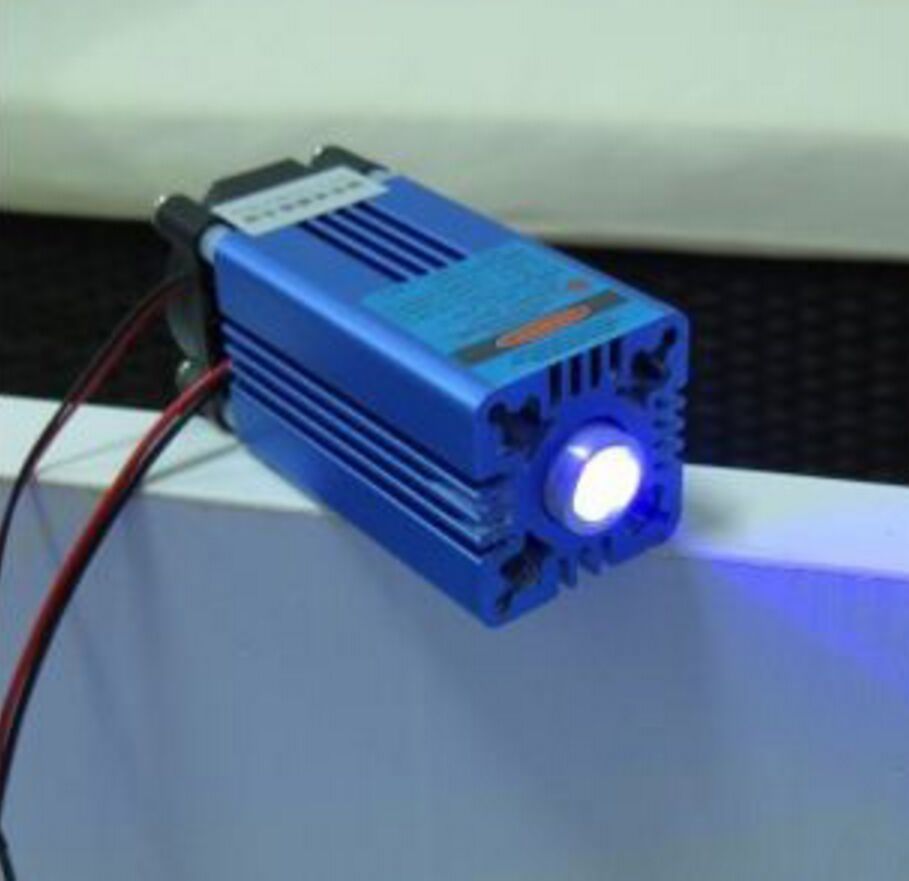

445nm 1.5W Blue Laser Module With TTL Modulation For Laser Stage Light Images
